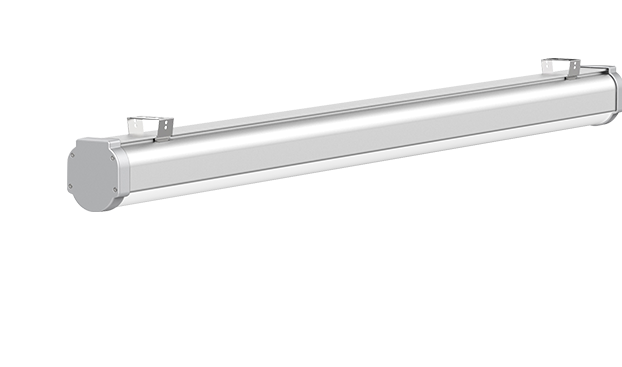

E-Wind Non-corrosive/Vapor Tight Fixture

1. Perfectly suitable for industrial use due to IP65

2. Single installation or use as continuous line

3. Quick and easy installation

4. Robust and durable aluminum housing

5. Long lifetime due to high quality LED chips and drivers

6. 5 Years warranty

INQUIRY NOW
Luminaires-E-Wind Non-corrosive/Vapor Tight Fixture

Inquiry Now

Submit

Product Video

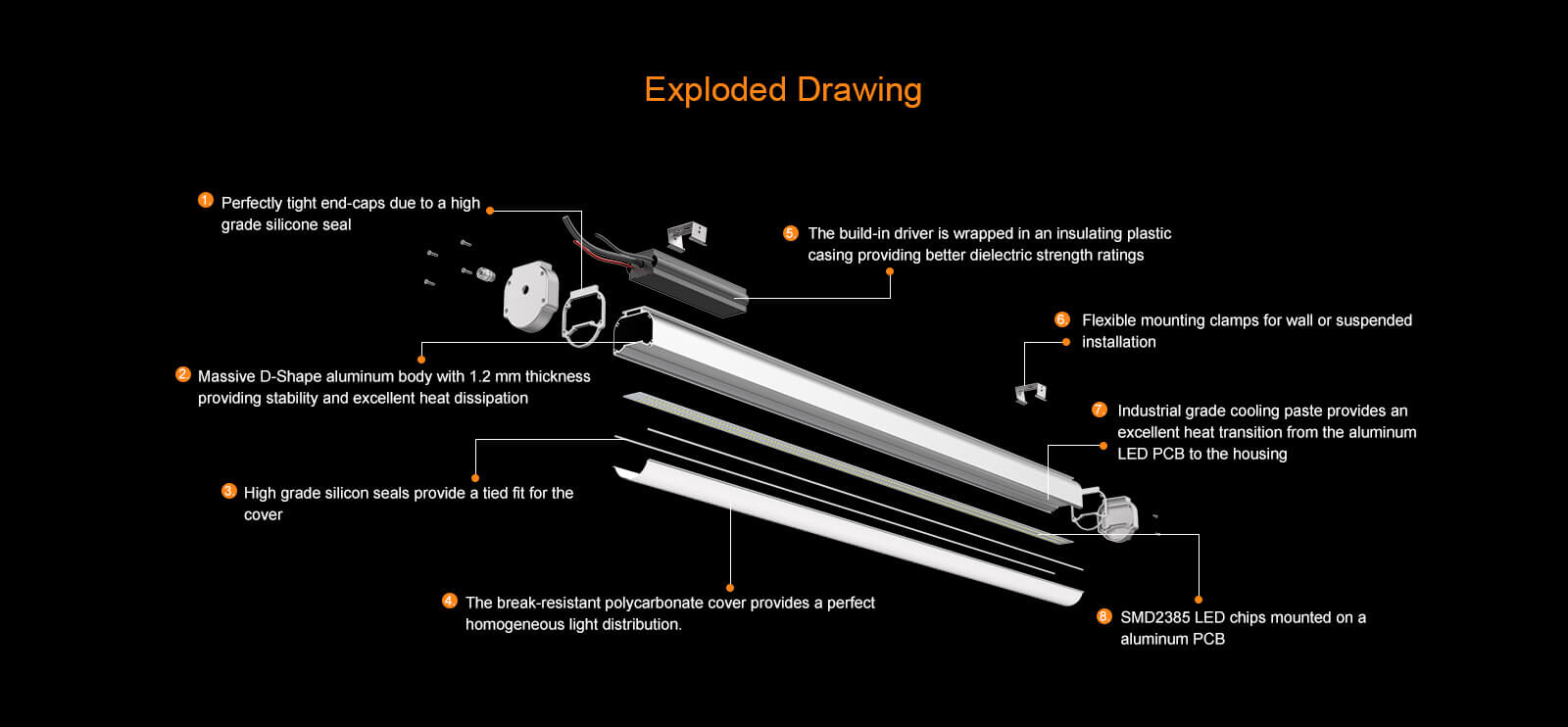

The T52 is a robust and modern LED Tri-proof light designed for inside and outside industrial or commercial use. Due to its durable materials it is well suited for all sorts’ of worksites, parking garages and warehouses. Its wide beam angel and the high grade Refond SMD2835 LED chips assure a perfectly homogeneous lighting distribution. It can be installed as a single light solution as well as in a continuous line throughout a hall. Quick connectors on each side allow for a quick and easy installation. The large surface area of the aluminum housing provides excellent cooling and a long lifespan.

Options

-Optional Mean well driver available

-CRI 90 Ra available upon request

-1-10V dimmable and DALI available

-Optional emergency power supply

Area of application

-Factories and other worksites

-Parking Facilities, corridors and halls

-Storage rooms and warehouses

Certificates

-American market: UL, DLC Premium, cUL

-European market: CE (EMC, LVD, RoHS)

Luminaires-E-Wind Non-corrosive/Vapor Tight Fixture

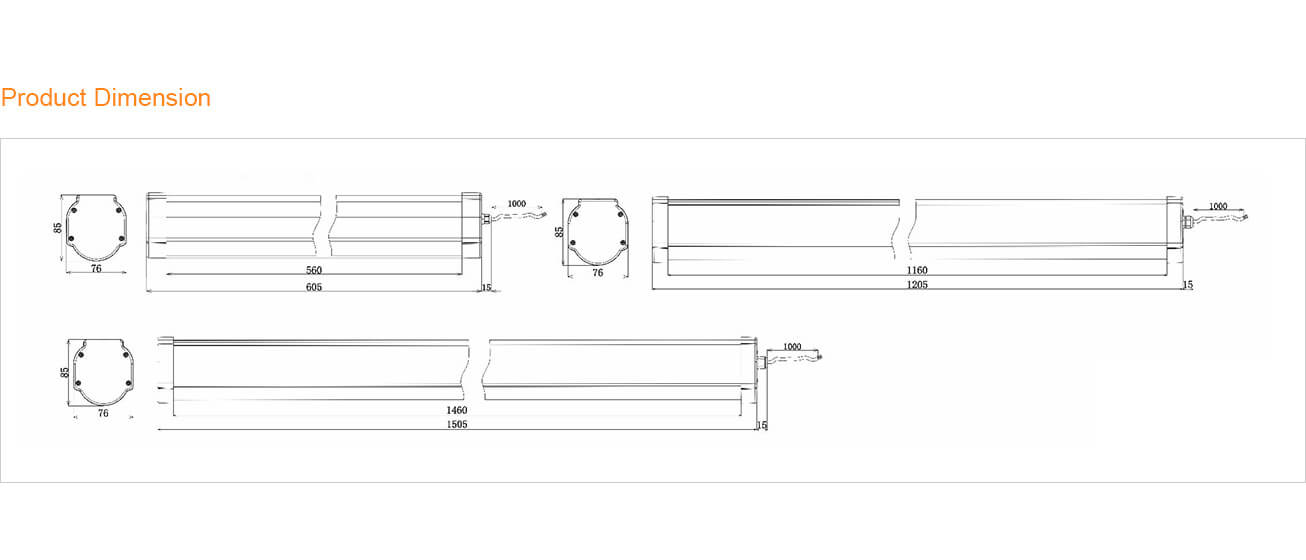

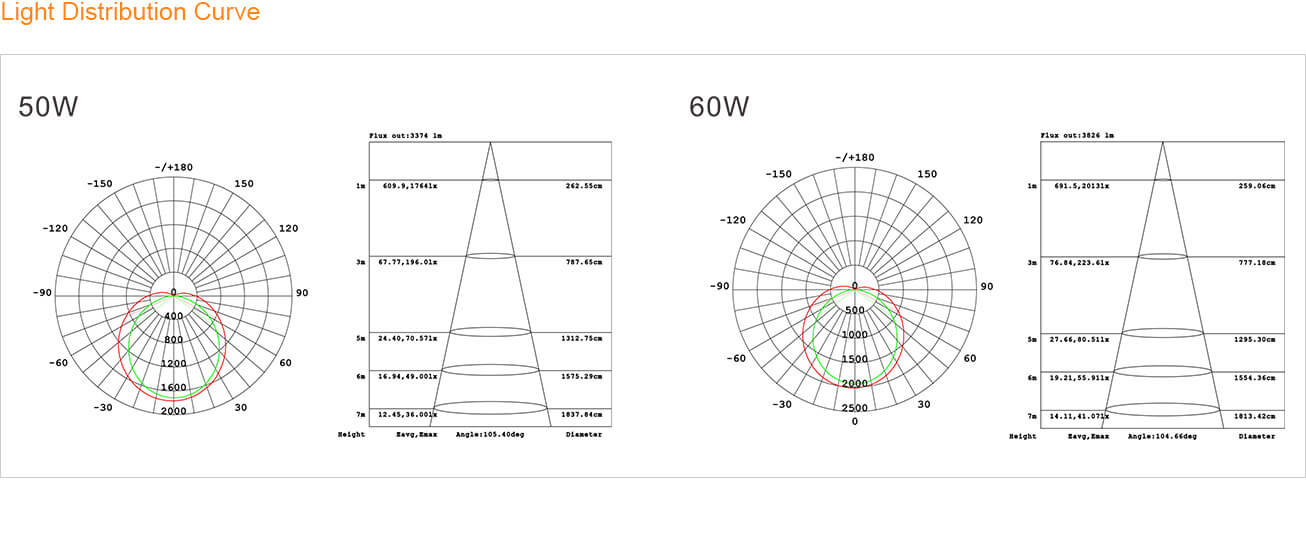

Product Dimension - E-Wind Non-corrosive/Vapor Tight Fixture Light Distribution Curve - E-Wind Non-corrosive/Vapor Tight Fixture

Specification

Basic Specifications
Model Nominal wattages (W) Nominal voltage Rated luminous efficacy (lm/w) Nominal luminous flux (lumen) Beam Angle LED Quantity CRI
T52-50W12 50 AC100~277V
50~60Hz
120±5 6000±250 120° 216pcs SMD2835  >80Ra
T52-60W12 60 120±5 7000±300 336pcs SMD2835
T52-60W15 60 120±5 7000±300 336pcs SMD2835
Electrical data Photometrical data
Operating frequency 47-63HZ Available light colors warm white;natural white;daylight white
Type of current AC100-277V Available color temperatures 3000K;4000K;5000K;6000K
Power factor λ >0.9 Color rendering index Ra >80
Efficiency in % >92% Standard deviation of color matching <3
Start time (0.2s / 0.5s / … ) 0.1S UGR (Unified Glare Rating) <21
Warm-up time to 60 %  (1.5s / 2s / … ) 0.5S Available beam angles 120°
Standards & Certification Temperatures & operating conditions
Type of protection IP65 Operating temp -20~+69℃
Tested dielectric strength 3.75KVac Ambient temperature -40~+50℃
Safety features Open circuit protection;
 short circuit protection ;
overvoltage protection
Storage temperature -40~+80℃
Certificates American market: UL, DLC Premium, cUL
European market: CE(EMC,LVD,RoHS)

Energy efficiency class A+
Lifespan Features/Capabilities and additional product data
Rated nominal Lifetime 50,000hours Base/Socket Directly wired
Switching cycles 100,000 times Dimmable 1-10V dimmable
Lumen maintenance at e.o.l. 70%
Product Weight & Package Information
Model Dimension(mm) CTN SIZE(CM) QTY/CTN Net Weight/pcs(g) Gross Weight /CTN(kg)
T52-50W12 1205*75*85 130*43*21 6PCS 2.5 21.8
T52-60W12 1205*75*85 130*43*21 6PCS 2.5 21.8
T52-60W15 1505*75*85 160*43*21 6PCS 3.5 27.8

Specification -E-Wind Non-corrosive/Vapor Tight Fixture
