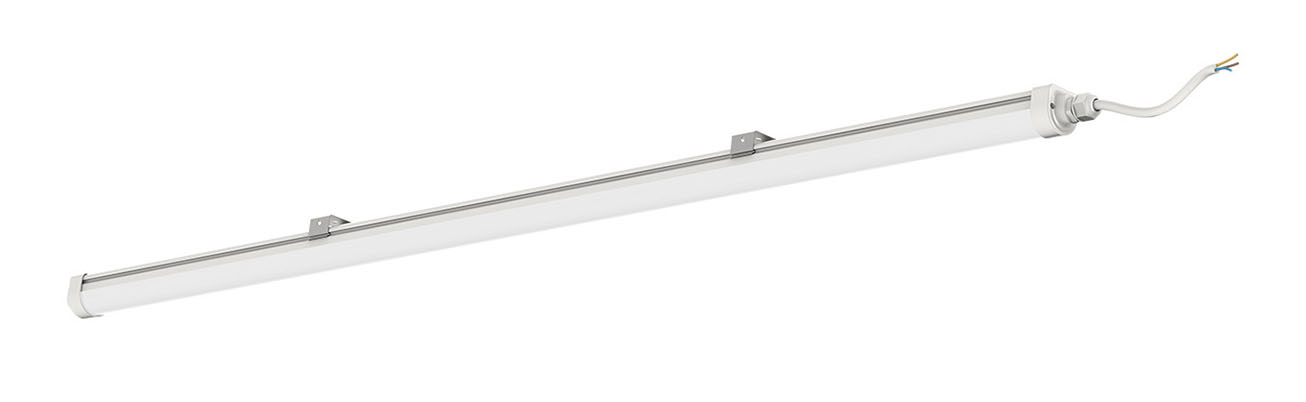

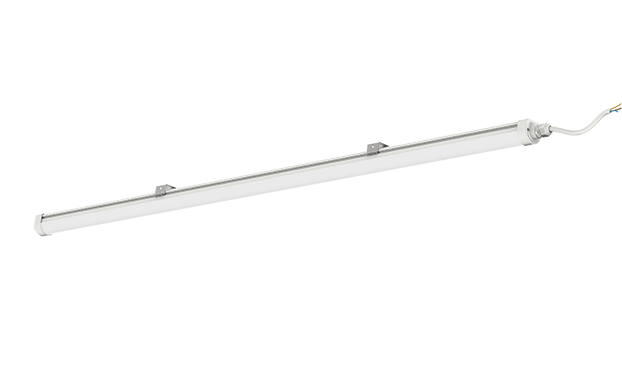

E-Slim Non-Corrosive Vapor Tight Fixture

1.Highly energy efficient - up to 130lm/w

2.Slim and durable design

3.Main housing made from a single mold for maximum tightness

4.IP67 and IK10 for indoor and outdoor use under all conditions

5.Quick and easy installation without the need to open the fixture

6.5 Years warranty

INQUIRY NOW
Luminaires-E-Slim Non-Corrosive Vapor Tight Fixture

Inquiry Now

Submit

Product Video

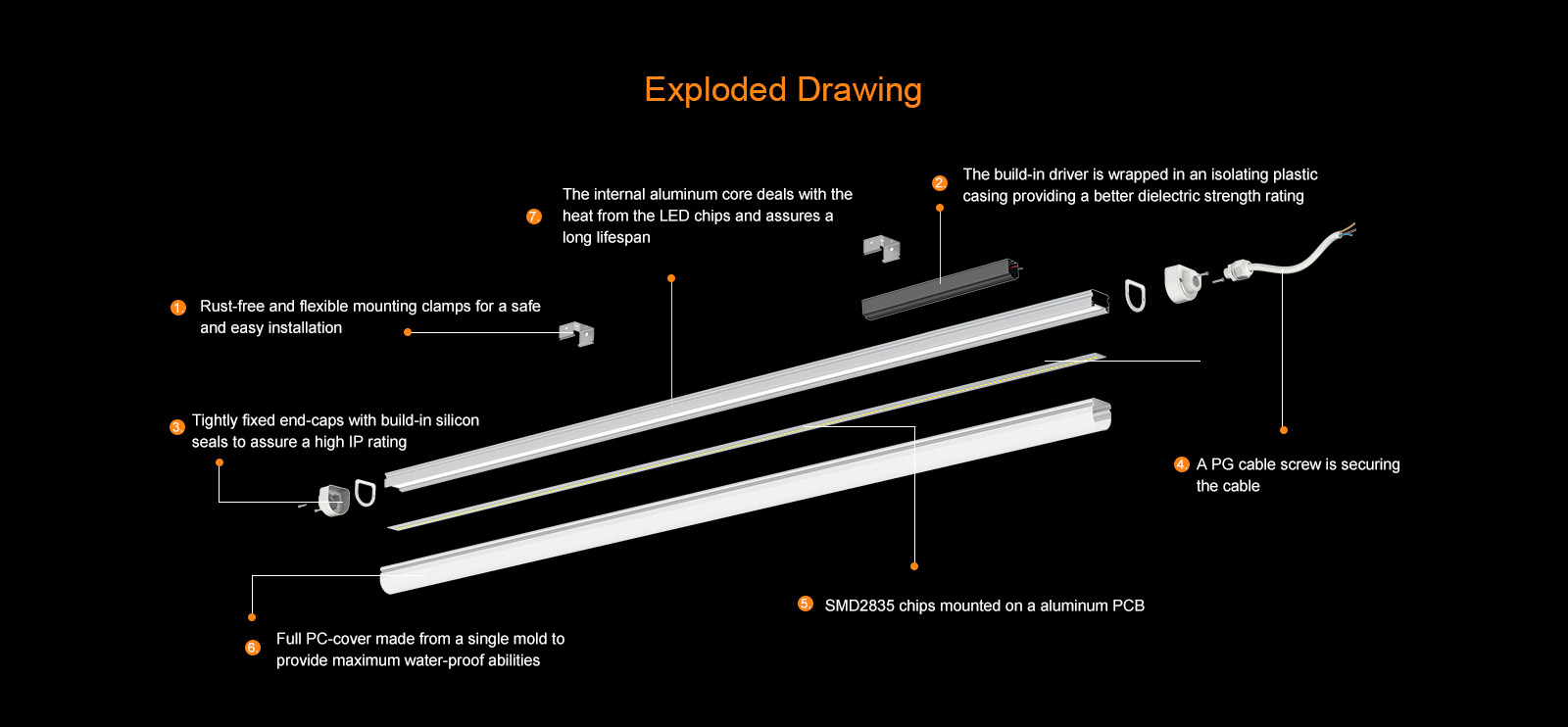

The E-Slim vapor tight industrial Tri-Proof light is the optimal solution for areas with harsh environmental conditions. Its main housing is made from a single mold and its end-caps are tightly fixed which allows for optimal water and dust resistance. The connection cable is secured by a water tight PG cable screw. Its highly efficient SMD2835 chips and the high transparent PC cover provide a very homogeneous light distribution. Thanks to its very slim body this fixture can be used in areas where not much ceiling space is available.

Options

-CRI90 available upon request

Area of application

- Areas with harsh conditions

- Warehouses and other storage areas

- Parking Facilities, corridors and halls

Certificates

-European market: CE (EMC, LVD, RoHS)

Luminaires-E-Slim Non-Corrosive Vapor Tight Fixture

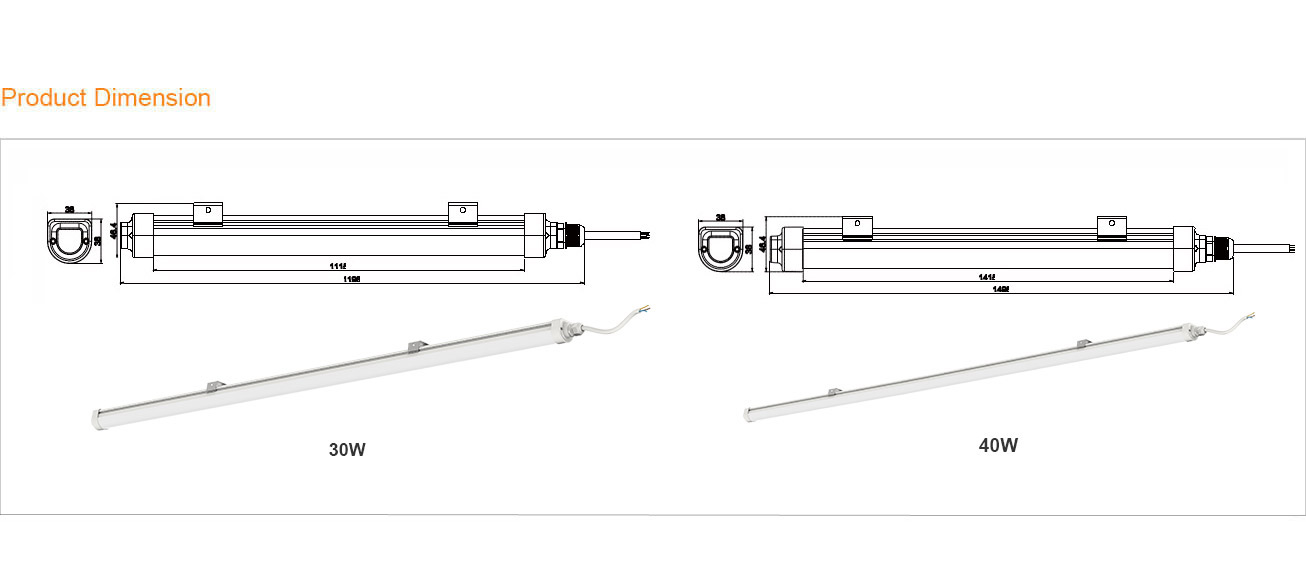

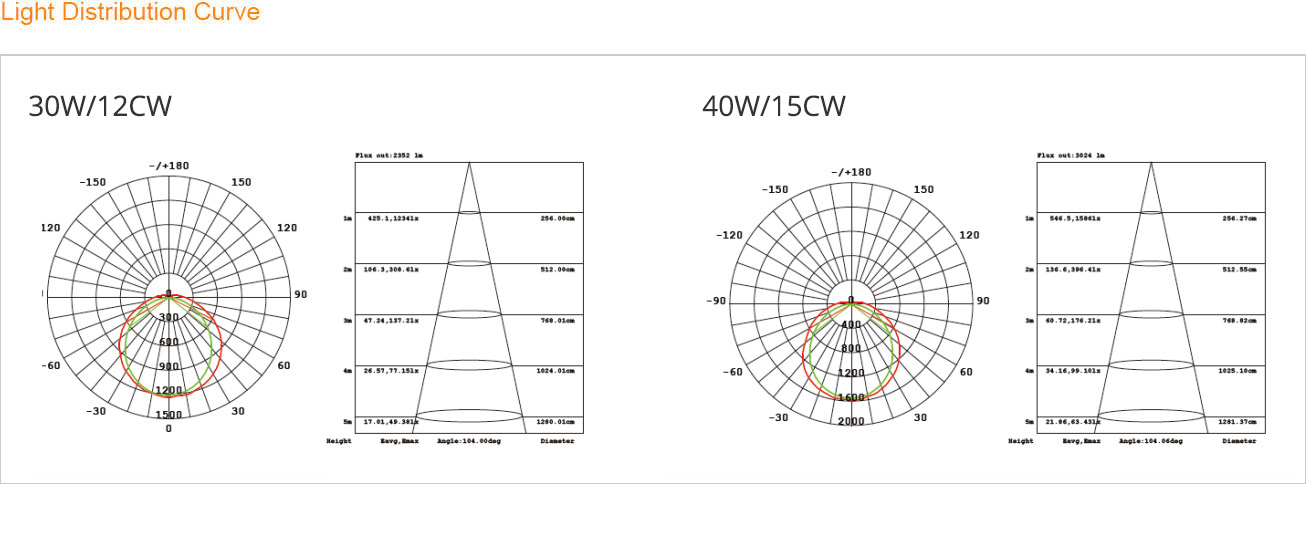

Product Dimension - E-Slim Non-Corrosive Vapor Tight Fixture Light Distribution Curve - E-Slim Non-Corrosive Vapor Tight Fixture

Specification

Standard lumen (120lm~130lm/W)
Model Nominal wattages (W) Nominal voltage Rated luminous efficacy (lm/w) Nominal luminous flux (lumen) Beam Angle LED Quantity CRI
T54-20W12 20 AC100~277V
50~60Hz
125±5 2500±100 120° 168PCS SMD 2835 >80Ra
T54-30W12 30 120±5 3600±150 168PCS SMD 2835
T54-30W15 30 125±5 3800±150 216PCS SMD 2835
T54-40W15 40 120±5 4800±200 216PCS SMD 2835
Electrical data Photometrical data
Operating frequency 47-63HZ Available light colors warm white;natural white;daylight white
Type of current AC100-277V Available color temperatures 3000K;4000K;5000K;6000K
Power factor λ >0.9 Color rendering index Ra >80
Efficiency in % >92% Standard deviation of color matching <3
Start time (0.2s / 0.5s / … ) 0.1S UGR (Unified Glare Rating) <27
Warm-up time to 60 % (1.5s / 2s / … ) 0.5S Available beam angles 120°
Standards & Certification Temperatures & operating conditions
Type of protection IP65 Operating temp 20~+65℃
Tested dielectric strength 3.75KVac Ambient temperature -30~+40℃
Safety features Open circuit protection;
short circuit protection ;
overvoltage protection
Storage temperature -40~+80℃
Certificates CE
Energy efficiency class A+ & A++
Lifespan Features/Capabilities and additional product data
Rated nominal Lifetime 5 Years Base/Socket Directly wired
Switching cycles 100,000 times Dimmable
Lumen maintenance at e.o.l. 70%
Packing Information
Model Dimension(MM) CTN SIZE(CM) QTY/CTN Net Weight/pcs(kg) Gross Weight /CTN(kg)
T54-20W12/30W12 1198*38*38 126*25*21 20PCS 0.8 22
T54-30W15/40W15 1498*38*38 156*25*21 20PCS 1.2 33
Specification -E-Slim Non-Corrosive Vapor Tight Fixture
