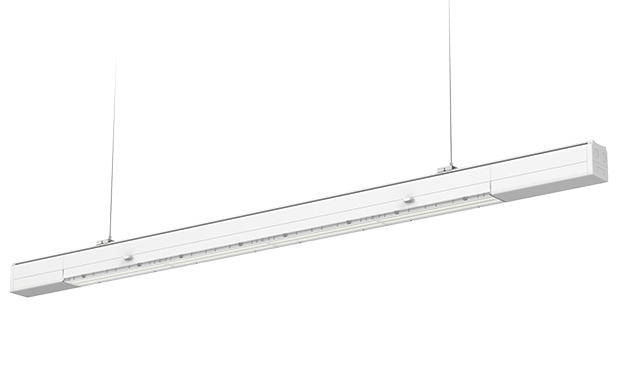

T28 Safeline

Highly energy efficient - up to 170 lm/w

Very high luminous flux - up to 12.000 lm

Quick connection system for a fast and easy installation

Available in 30W, 40W, 45W, 50W, 60W, 65W, 75W

Fits on our Trunks as well as on Trilux E-Line Trunks

7-wires with Trilux Trunks / up to 11-wires with FYT Trunks

IP20 with Trilux Trunks / IP54 with FYT Trunks

Two module length available: 1181mm and 1475mm

Various beam angle options: 30° / 60° / 90° / 120° / 25°x25°

High grade SMD2835 chips on 2mm aluminum PCB

Dimmable and emergency lighting can be used together

INQUIRY NOW
Linear Trunking system-T28 Safeline

Inquiry Now

Submit

Product Video

Options

1-10V dimmable or DALI dimmable

Emergency power supplies up to 180min are available

T-X-L Connectors are available

Track-light and Power-socket modules are available

High profile Blind Covers are available

End caps for different Trunks are available

Area of application

Conference rooms

Exhibition & showrooms

Entrance & reception areas

Factories and warehouses

Certificates

European market: CE (EMC, LVD, RoHS)

Australian market: SAA

Linear Trunking system-T28 Safeline

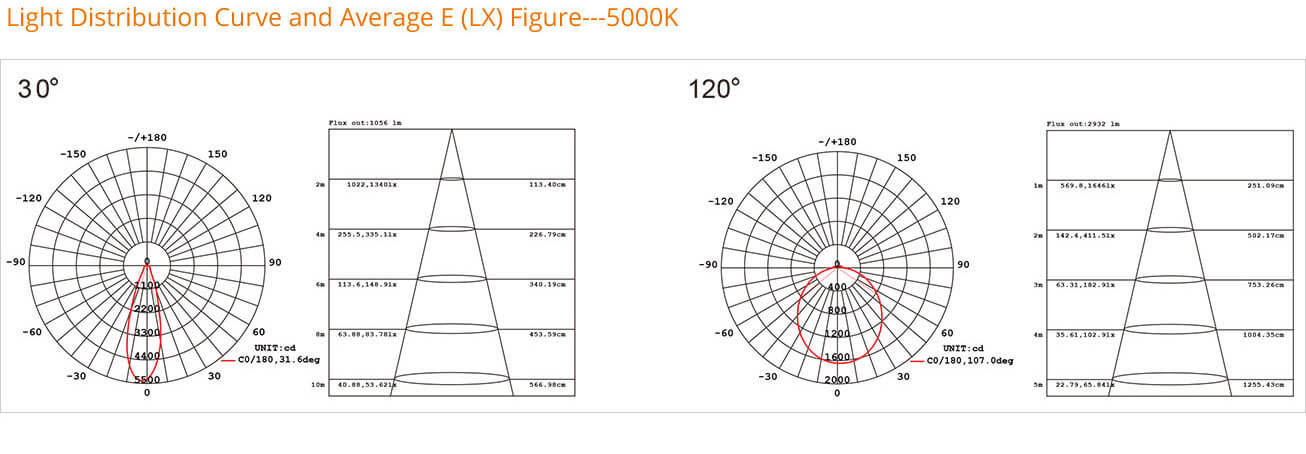

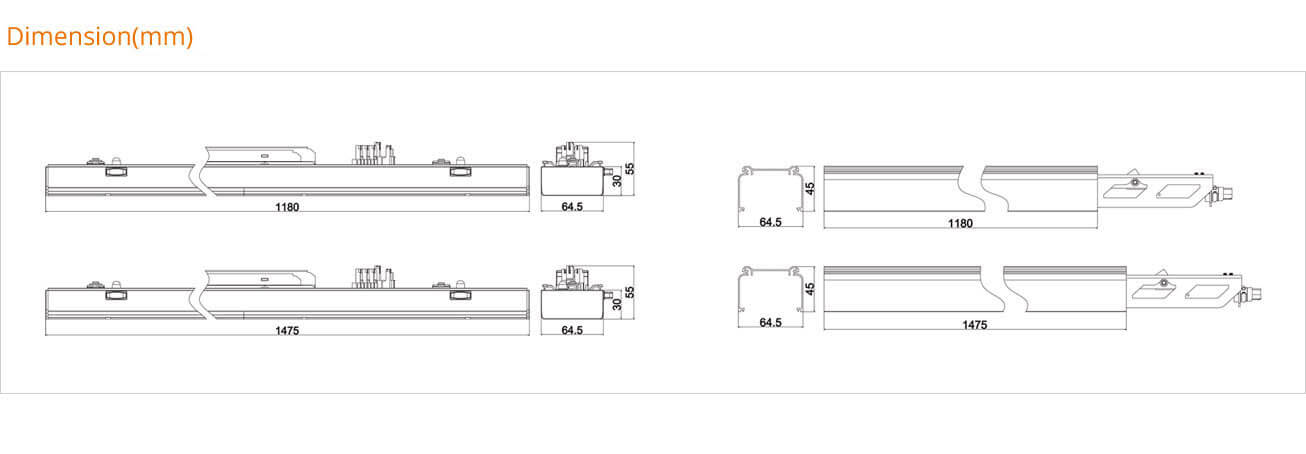

Product Dimension - T28 Liner Trunking System Light Distribution Curve - T28 Liner Trunking System

Specification

Standard lumen (140lm~150lm/W)
Model Nominal wattages (W) Nominal voltage Rated luminous efficacy (lm/w) Nominal luminous flux (lumen) Beam Angle LED Quantity CRI
T28-30W12 30 AC100~277V
50~60Hz		 145±5 4400±150 120°/90°/60°/30°/25°*25° 280PCS SMD 0.5W 2835 >80Ra
T28-40W12 40 145±5 5800±200 280PCS SMD 0.5W 2835
T28-50W12 50 140±5 7000±250 280PCS SMD 0.5W 2835
T28-60W12 60 140±5 8400±300 280PCS SMD 0.5W 2835
T28-50W15 50 145±5 7300±250 364PCS SMD 0.5W 2835
T28-60W15 60 145±5 8700±300 364PCS SMD 0.5W 2835
T28-75W15 75 140±5 10500±400 364PCS SMD 0.5W 2835
Standard lumen (160lm~170lm/W)
Model Nominal wattages (W) Nominal voltage Rated luminous efficacy (lm/w) Nominal luminous flux (lumen) Beam Angle LED Quantity CRI
T28-30W12 30 AC100~277V
50~60Hz		 165±5 5000±150 120° 280PCS SMD 0.5W 2835 >80Ra
T28-40W12 40 165±5 6600±200 280PCS SMD 0.5W 2835
T28-50W12 50 165±5 8000±250 280PCS SMD 0.5W 2835
T28-60W12 60 165±5 9600±300 280PCS SMD 0.5W 2835
T28-50W15 50 165±5 8200±250 364PCS SMD 0.5W 2835
T28-60W15 60 165±5 9900±300 364PCS SMD 0.5W 2835
T28-75W15 75 165±5 12000±400 364PCS SMD 0.5W 2835
Lifespan Temperatures & operating conditions
Rated nominal Lifetime 50.000 hours Heatsink temperature -20~+69℃
Switching cycles 100,000 times Ambient temperature -25~+50℃
Lumen maintenance at e.o.l. 80% Storage temperature -40~+80℃
Standards & Certification Features/Capabilities and additional product data
Type of protection FYT-TUNK-IP54 Trilux trunk-IP20 Base/Socket /
Tested dielectric strength 3.75KVac Dimmable 1-10V dimmable, DALI dimmable,
Safety features Open circuit protection;
short circuit protection ;
overvoltage protection
Certificates CE, RoHS


Energy efficiency class A++
Product Weight & Package Information
Model Dimension（mm) CTN SIZE(CM) QTY/CTN Net Weight/pcs(kg) Gross Weight /CTN(kg)
1.2M Trunking Rail 1180*65*60 125*26*27 12PCS 2.2 29.5
1.2M LED Module 1180*65*45 138*33*23 12PCS 1.5 21
1.5M Trunking Rail 1475*65*60 154*26*27 12PCS 2.8 36
1.5M LED Module 1457*65*45 168*33*21 12PCS 1.9 26

Specification -T28 Safeline
