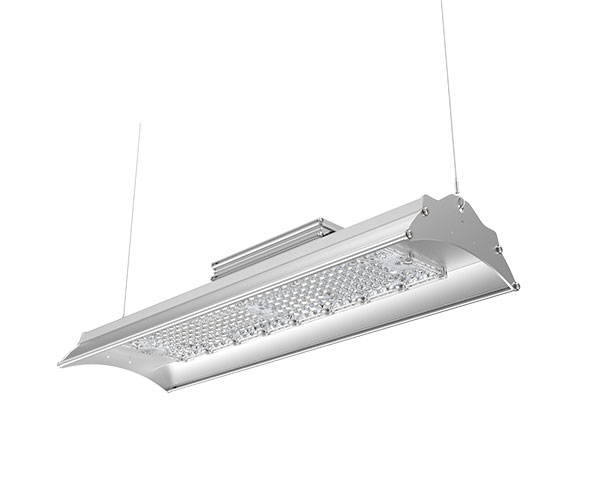

Shine a Light in Every Corner!
Shine a Light in Every Corner!
High efficiency up to 160lm/W Low UGR<16
60° / 90° / 30×70°
CRI>70/80
IP65 protection
5 years warranty
Inquire Now
| Model No. | HBL117-100W | HBL117-150W | HBL117-200W | HBL117-200W | HBL117-240W | HBL117-300W | |
|---|---|---|---|---|---|---|---|

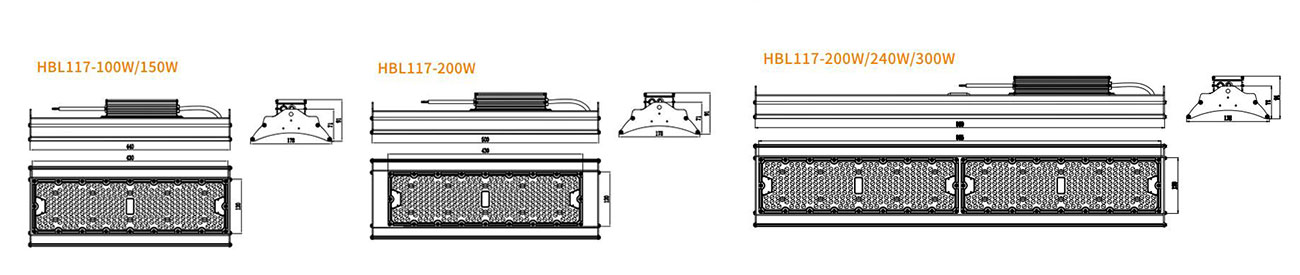

| Product Dimension | 440*178*91(mm) | 440*178*91(mm) | 500*178*91(mm) | 880*178*91(mm) | 880*178*91(mm) | 880*178*91(mm) | |
| Efficiency | 165±10%lm/W (Ra>80) | 155±10%lm/W (Ra>80) | 145±10%lm/W (Ra>80) | 165±10%lm/W (Ra>80) | 160±10%lm/W (Ra>80) | 155±10%lm/W (Ra>80) | |
| Luminous Flux (±10%) | 16500±10%lm | 23200±10%lm | 29000±10%lm | 33000±10%lm | 38400±10%lm | 46500±10%lm | |
| Efficiency PLUS | 175±10%lm/W (Ra>80) | 170±10%lm/W (Ra>80) | 165±10%lm/W (Ra>80) | 175±10%lm/W (Ra>80) | 170±10%lm/W (Ra>80) | 165±10%lm/W (Ra>80) | |
| Luminous Flux (±10%) | 17500±10%lm | 25500±10%lm | 33000±10%lm | 35000±10%lm | 40800±10%lm | 49500±10%lm | |
| Efficiency PLUS+ | 195±10%lm/W (Ra>70) | 185±10%lm/W (Ra>70) | 175±10%lm/W (Ra>70) | 195±10%lm/W (Ra>70) | 190±10%lm/W (Ra>70) | 185±10%lm/W (Ra>70) | |
| Luminous Flux (±10%) | 19500±10%lm | 27700±10%lm | 35000±10%lm | 39000±10%lm | 45600±10%lm | 55500±10%lm | |
| CCT | 3000K;4000K;5000K;5700K;6500K | ||||||
| Ingress Protection | IP65 | ||||||
| Color Rendering Index | Ra>70/80 | ||||||

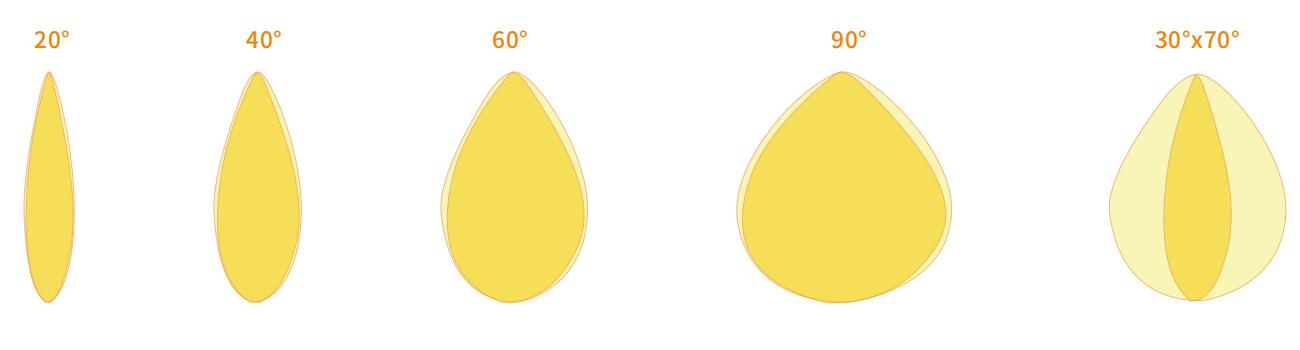

| Beam Angle | 20°/40°/60°/90°/30*70°（Interchangeable） | ||||||
| LOW UGR | 20°/40°/60° 16 90° 19 30*70° 22 | ||||||
| Driver Brand | TOMCARLINE | ||||||
| Input Voltage | AC100-277V | ||||||
| Power Factor | 0.95 | ||||||
| Frequency | 47-63HZ | ||||||
| Driver Type | Constant Current (CC) | ||||||
| Luminaire Net Weight | 2.3kg | 2.4kg | 2.6kg | 4.3kg | 4.3kg | 4.5kg | |
| Packing Information | 1PCS/CTN | 1PCS/CTN | 1PCS/CTN | 1PCS/CTN | 1PCS/CTN | 1PCS/CTN | |
| Export Carton Size | 51*24*16(cm) | 51*24*16(cm) | 57*24*16(cm) | 96*24*16(cm) | 96*24*16(cm) | 96*24*16(cm) | |
| Gross Weight | 3.1kg | 3.2kg | 3.5kg | 5.3kg | 5.3kg | 5.5kg | |
| Material | Housing | Aluminum Alloy | |||||
| Optics | PC lens | ||||||
| Finish | Powder Coating | ||||||
| Fixture Color | Silver | ||||||

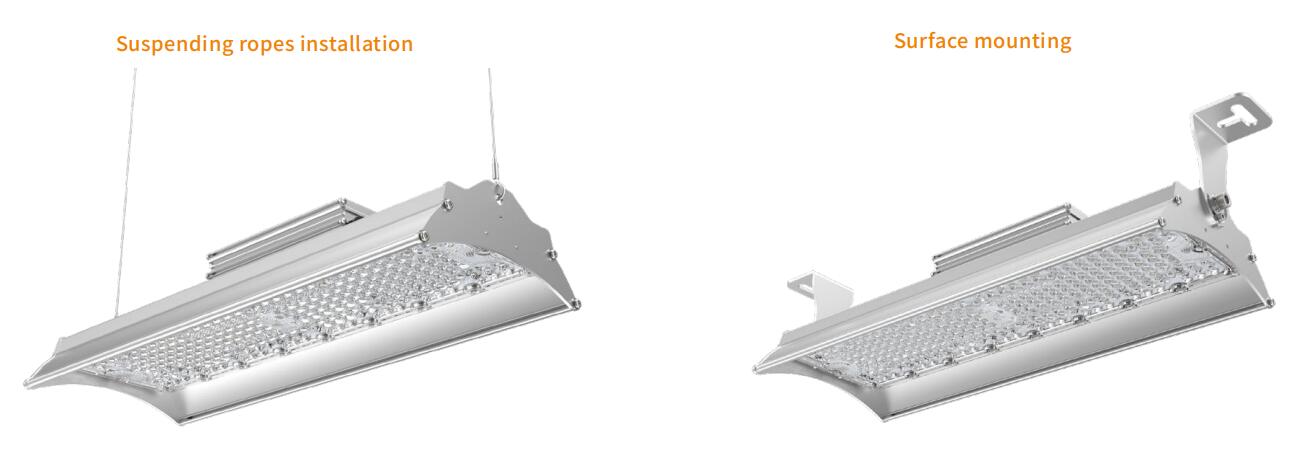

| Mounting Option | Suspending ropes installation/ Surface mounting | ||||||
| Storage temperature range | -30℃-+70℃ | ||||||
| Storage humidity range | 85% max. | ||||||
| Operating temperature range | -40~+50℃ | ||||||
| Operating humidity range | 85% max. | ||||||
| Life Time | 50.000 hours | ||||||
| Warranty | 5 Years | ||||||
| Dimmable | 1-10V/0-10V dimmable | ||||||

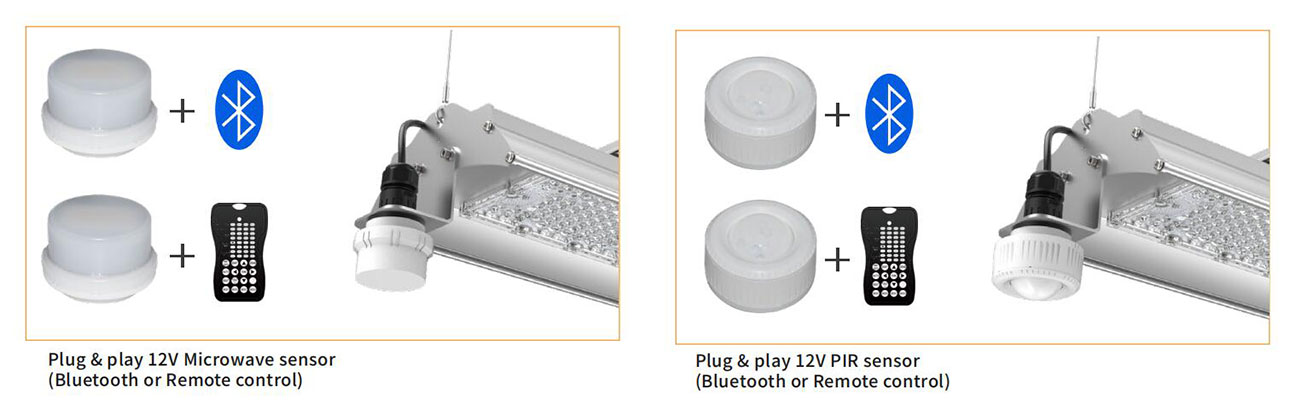

| Intelligent Control | PLug& play 12V PIR / Microwave motion sensor | ||||||
| Optional Accessories | PLug & play 12V PIR / Microwave motion sensor | ||||||
| CRI > 90 optional | |||||||
| PLug & play 12V PIR / Microwave motion sensor | |||||||
