1. High efficacy up to 140lm/W
2. Single installation or use as a continuous line

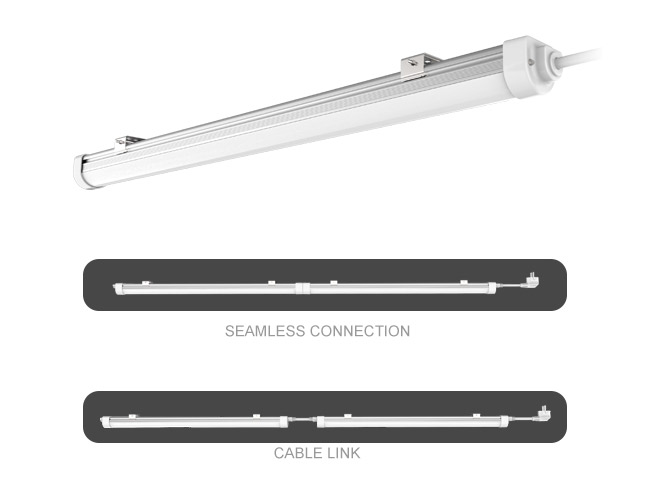

3.Non-gap connection and cable link optional
4. Quick and easy installation
5. IP42 & IK10
6.Slim and durable design
Inquire Now
1Power adjustable
2Smart plug & play system for build-in sensor
- without wiring and without tool
| Model No | T204-10W03 | T204-10W06 | T204-20W06 | T204-15W12 | T204-20W12 | T204-30W12 | T204-30W15 | T204-40W15 | |
|---|---|---|---|---|---|---|---|---|---|

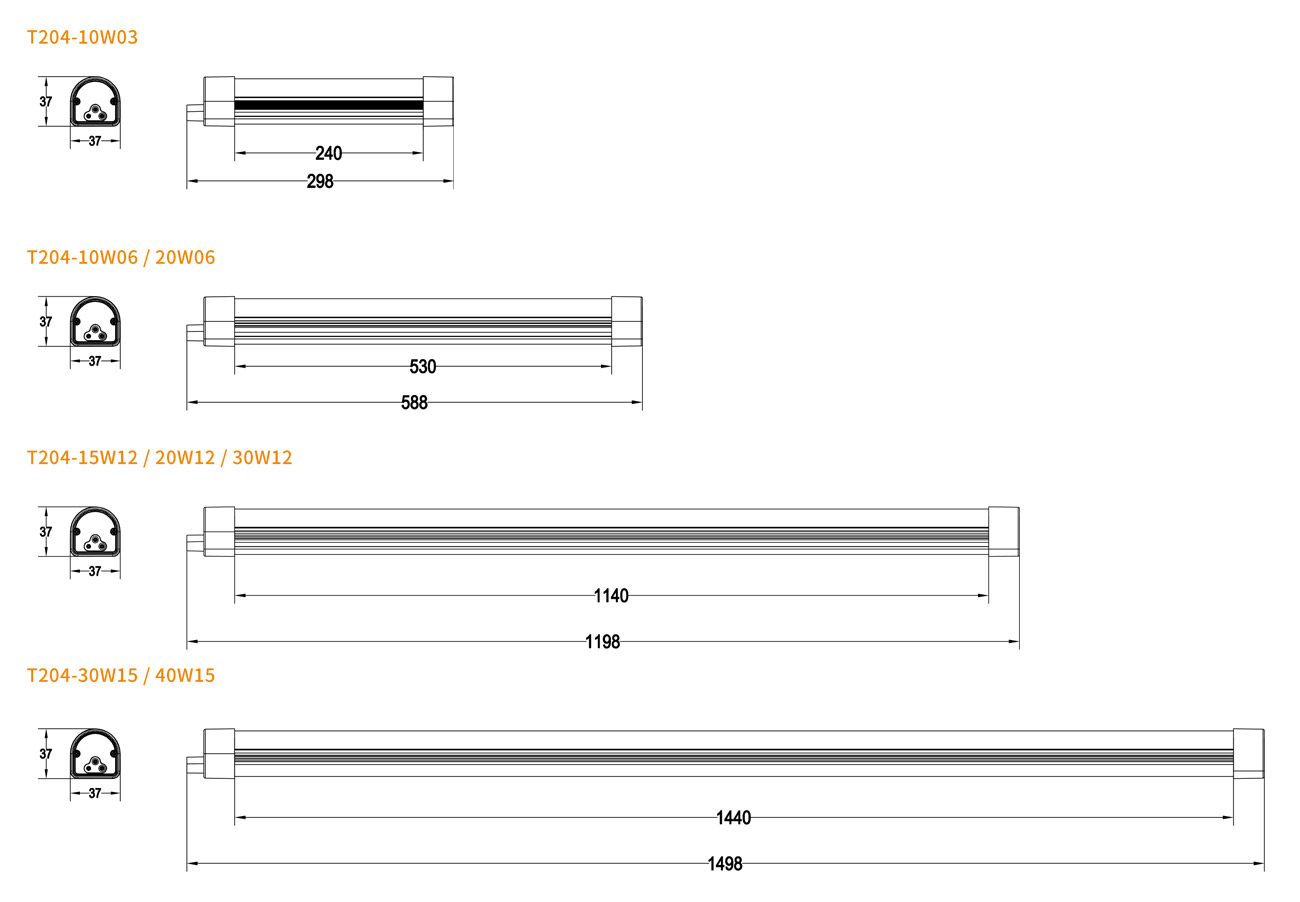

| Product Dimension | 298*37*37(mm) | 588*37*37(mm) | 588*37*37(mm | 1198*37*37(mm) | 1198*37*37(mm) | 1198*37*37(mm) | 1498*37*37(mm) | 1498*37*37(mm) | |
| Efficiency | 140 LM/W(CRI>80) | ||||||||
| Luminous Flux (±10%) | 14000±1000lm | 1400±100lm | 2800±200lm | 2100±150lm | 2800±200lm | 4200±300lm | 4200±300lm | 5600±400lm | |
| CCT | 3000K;4000K;5000K;6000K | ||||||||
| Color Rendering Index | Ra>80 (>90 optional) | ||||||||

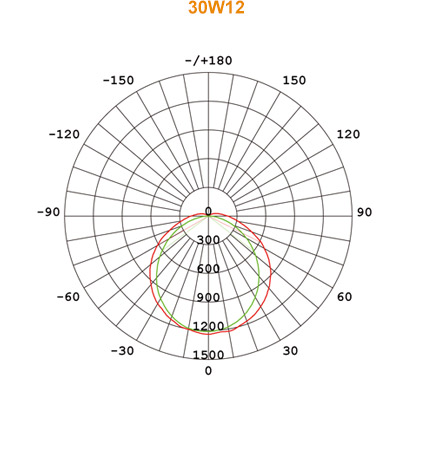

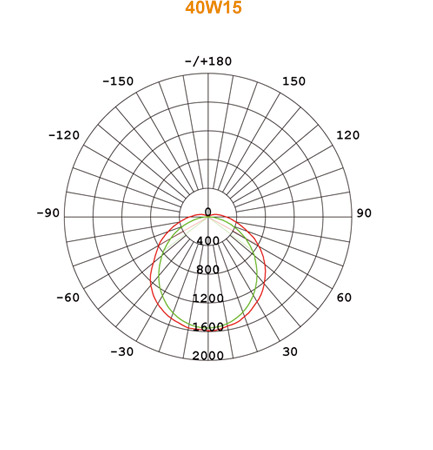

| Beam Angle | 120° | ||||||||
| Driver Brand | TOMCARLINE | ||||||||
| Input Voltage | AC100-277V | ||||||||
| Power Factor | >0.9 | ||||||||
| Frequency | 47-63HZ | ||||||||
| Driver Type | Constant Current (CC) | ||||||||
| Luminaire Net Weight | 0.25kg | 0.45kg | 0.45kg | 0.8kg | 0.8kg | 0.8kg | 1.2kg | 1.2kg | |
| Packing Information | 40PCS/CNT | 20PCS/CNT | 20PCS/CNT | 20PCS/CNT | 20PCS/CNT | 20PCS/CNT | 15PCS/CN | 15PCS/CN | |
| Export Carton Size | 615*22.5*17.8(cm) | 67.3*22.5*17.8(cm) | 67.3*22.5*17.8(cm) | 128*22.5*17.8(cm) | 128*22.5*17.8(cm) | 67.3*22.5*17.8(cm) | 158*22.5*13.8(cm) | 158*22.5*13.8(cm) | |
| Gross Weight | 25kg | 23kg | 23kg | 27kg | 27kg | 27kg | 29g | 29kg | |
| Material | Housing | Aluminum Alloy | |||||||
| Optics | PC milky cover | ||||||||
| Fixture Color | White | ||||||||

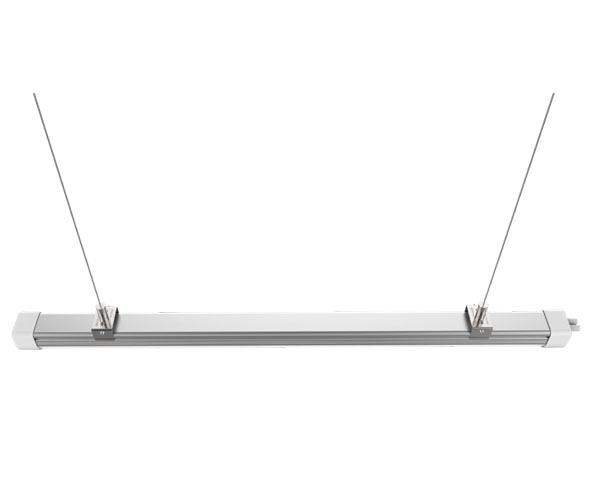

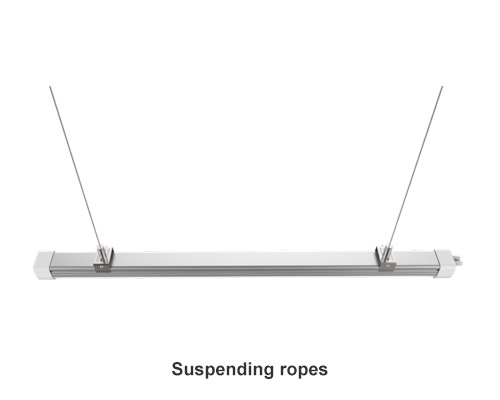

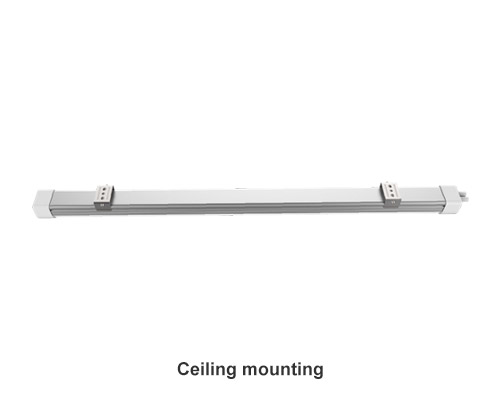

| Mounting Option | Ceiling mounted / Suspending ropes | ||||||||
| Ambient Temperature | -30~+45℃ | ||||||||
| Life Time | 50.000 hours | ||||||||
| Warranty | 5 Years | ||||||||
| IP Grade | IP42 | ||||||||
| IK Grade | IK10 | ||||||||
| Accessory | Cable-link connector | ||||||||

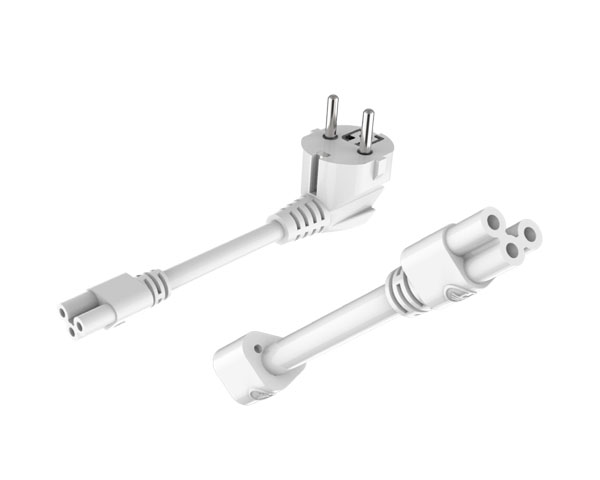

| Input plug | |||||||||
480V driver
1-10V dimmable, Dali dimmable
