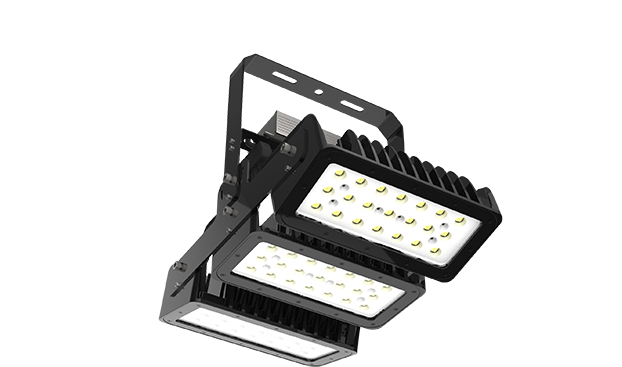

T34 Flood Light

1.Extremely energy efficient - up to 140 lm/w

2.High Luminous flux - up to 39.000 lm

3.Excellent heat dissipation and modern design

4.Massive heat sink with long cooling fins on each LED module

5.Individually adjustable installation angel for each LED module

6.Flicker-free and long-lasting power driver

7.Driver positioned high above the heatsink (keeps all the heat away from the driver)

8.Sealed tempered-glass front for maximum chemical resistance

9.IP65 for all weather conditions

10.5 years warranty

INQUIRY NOW
Outdoor Lighting-T34 Flood Light

Inquiry Now

Submit

Product Video

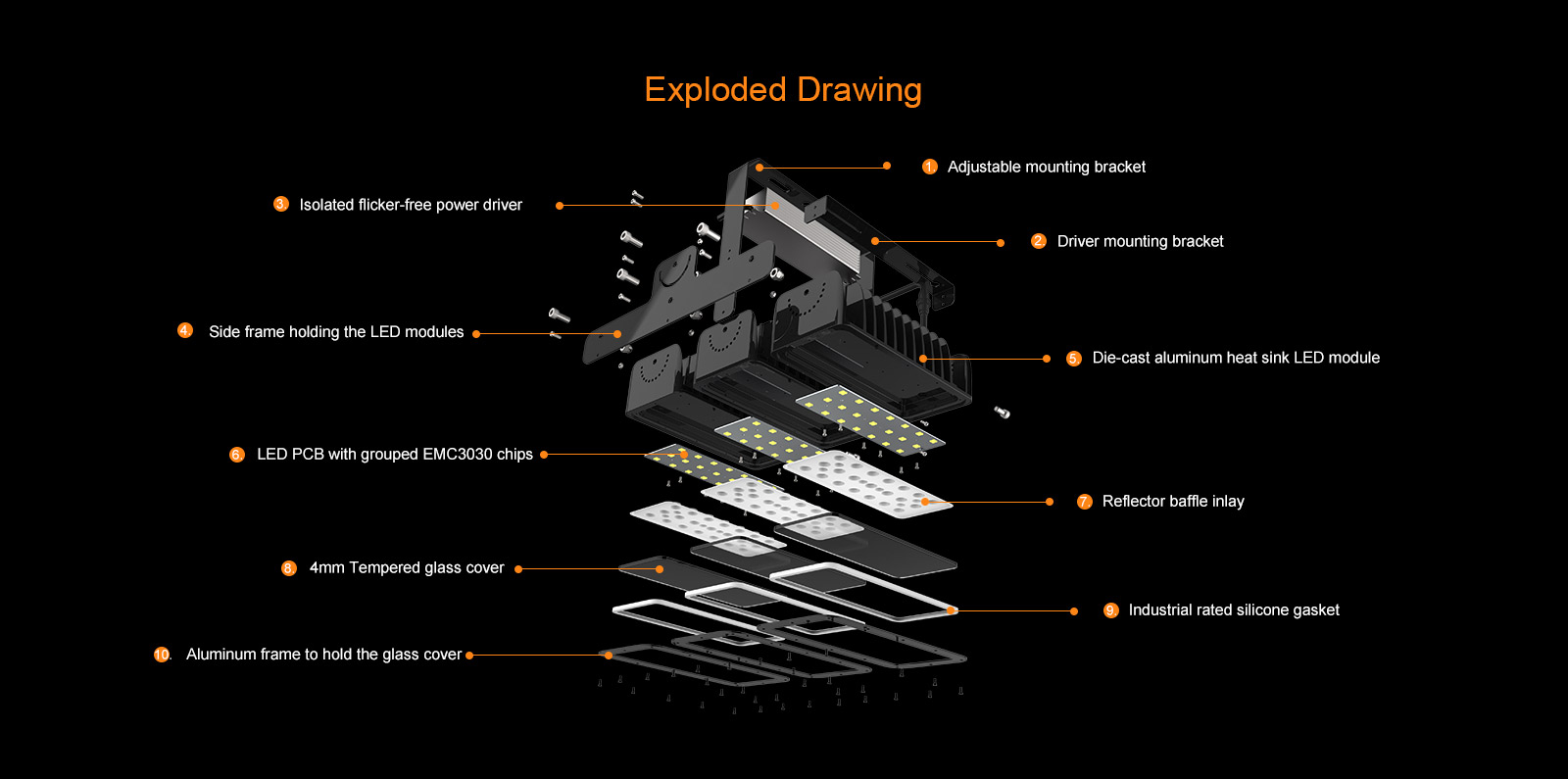

The T34 is a robust and flexible Floodlight for indoor and outdoor applications. Its modular design allows to adjust each module to the desired angel to optimize the light distribution if needed. Each module contains 84 pcs of EMC 3030 chips totaling in 80W with about 140lm/w efficiency. Up to 4 modules can be added for a maximum system power of 300W. The driver is mounted on the mounting bracket at the backside of the fixture. This assures that the driver is in no way influenced by the heat of the fixture which in term assures a reliable and stable operation. The LED chips are protected by 4mm tempered glass, secured by a solid aluminum frame and an industrial rated silicone gasket. This makes this fixture ideal for harsh condition and even areas where chemicals like salt or ammonia are present. Of course we do offer optional CRI80 chips as well as dimmable and DALI dimmable drivers for this series.

Options

- CRI 80 Ra available upon request

- 1-10V Dimmable and DALI Dimmable available

Area of application

- Factories and warehouses

- Barns and riding halls

- Exhibition & showrooms

Certificates

-European market:  CE(EMC,LVD,ROHS)

Outdoor Lighting-T34 Flood Light

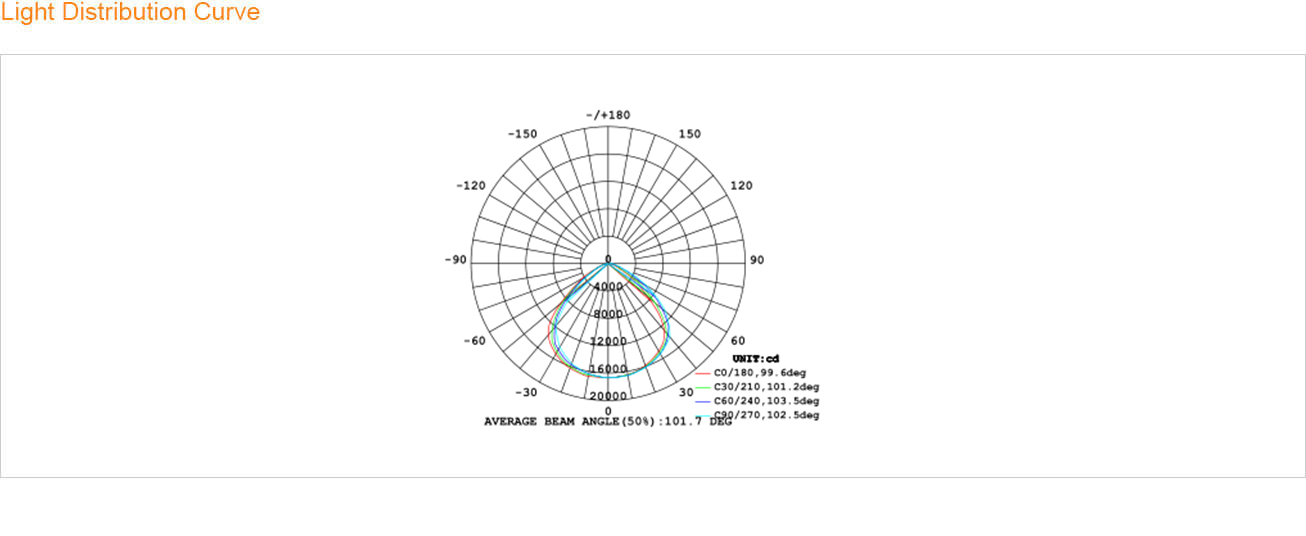

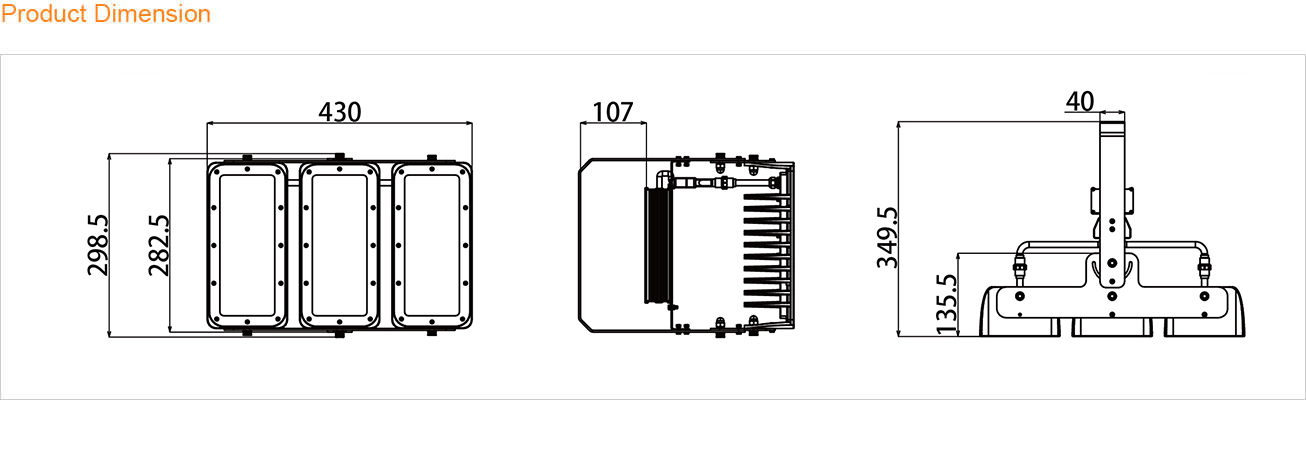

Product Dimension - T34 Flood Light Light Distribution Curve - T34 Flood Light

Specification

Standard lumen (140lm/W)

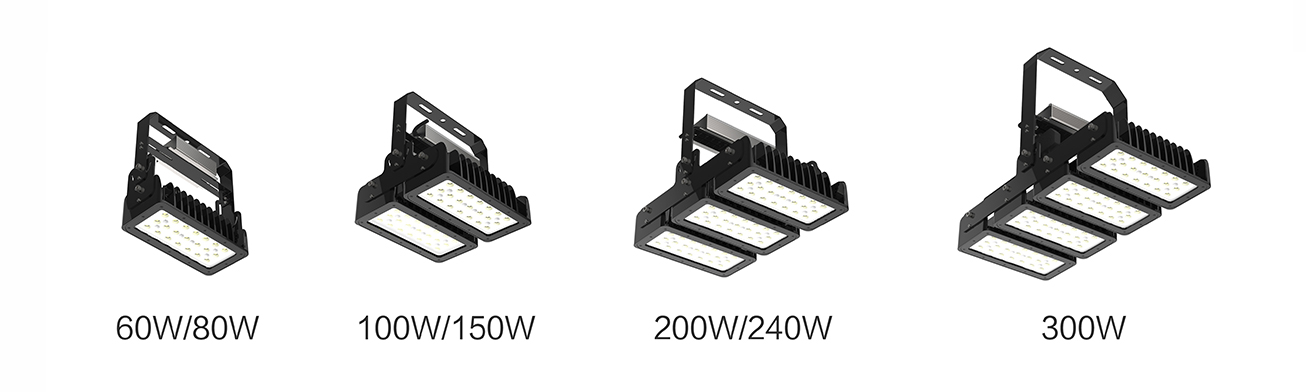

Model Nominal wattages (W) Nominal voltage Rated luminous efficacy (lm/w) Nominal luminous flux (lumen) Beam Angle LED Quantity CRI
130-T34-60W 60W AC100~277V
50~60Hz		 130±10 7800±600 110° 84pcs EMC3030 >70Ra
130-T34-80W 80W 130±10 10400±800 84pcs EMC3030
280-T34-100W 100W 135±10 13000±1000 168pcs EMC3030
280-T34-150W 150W 130±10 19500±1500 168pcs EMC3030
430-T34-200W 200W 130±10 26000±2000 252pcs EMC3030
430-T34-240W 240W 130±10 31200±2400 252pcs EMC3030
580-T34-300W 300W 130±10 39000±3000 336pcs EMC3030
Electrical data Photometrical data
Operating frequency 47-63HZ Available light colors warm white;natural white;daylight white
Type of current AC100-277V Available color temperatures 3000K;4000K;5000K;6000K
Power factor λ >0.9 Color rendering index Ra >70
Efficiency in % >92% Standard deviation of color matching <5
Start time (0.2s / 0.5s / … ) 0.1S UGR (Unified Glare Rating) <30
Warm-up time to 60 %  (1.5s / 2s / … ) 0.5S Available beam angles 110°
Standards & Certification   Temperatures & operating conditions
Type of protection IP65 Heatsink temperature 20~+69℃
Tested dielectric strength  3.75KVac Ambient temperature -30~+50℃
Safety features  Open circuit protection;
short circuit protection ;
overvoltage protection 		 Storage temperature -40~+80℃
Certificates European market:CE(EMC,LVD,RoHS)
Energy efficiency class A+
Lifespan Features/Capabilities and additional product data
Rated nominal Lifetime 50.000 hours Base/Socket Directly wired
Switching cycles  100.000 times Dimmable 1-10V dimmable、DALI dimmable
Lumen maintenance at e.o.l.  80%
LED Device Lifetime  L80/B10 @ 50.000H
Packing Information
Model Dimension CTN SIZE(CM) QTY/CTN Net Weight/pcs(kg) Gross Weight /CTN(kg)
130-T34-60W 130*298.5*300MM 67*28.5*22.5 4PCS 2.98 15.32
130-T34-80W 130*298.5*300MM 67*28.5*22.5 4PCS 3.15 15.49
280-T34-100W 280*298.5*349.5MM 650*337*22 2PCS 6.58 7.63
280-T34-150W 280*298.5*349.5MM 650*337*22 2PCS 6.72 7.77
430-T34-200W 430*298.5*349.5MM 480*330*205 1PCS 9.1 10.15
430-T34-240W 430*298.5*349.5MM 480*330*205 1PCS 9.7 10.85
580-T34-300W 580*298.5*429.5MM 625*330*380 1PCS 13.8 15.9

Specification -T34 Flood Light
