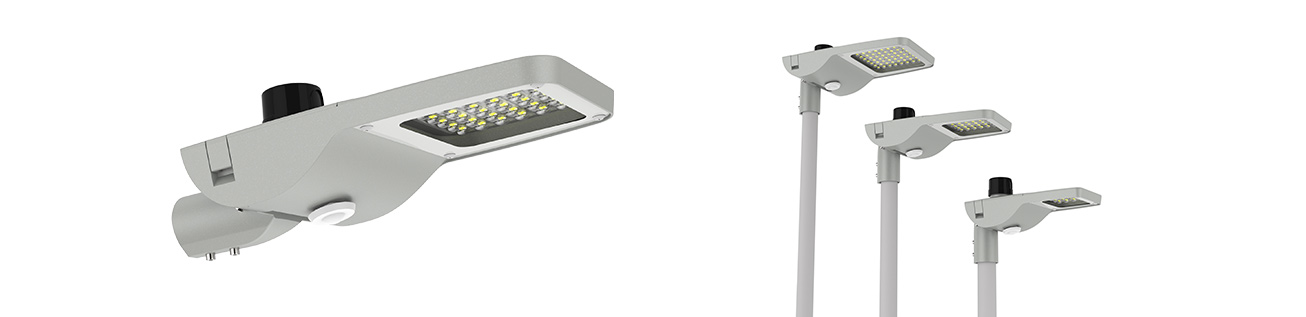

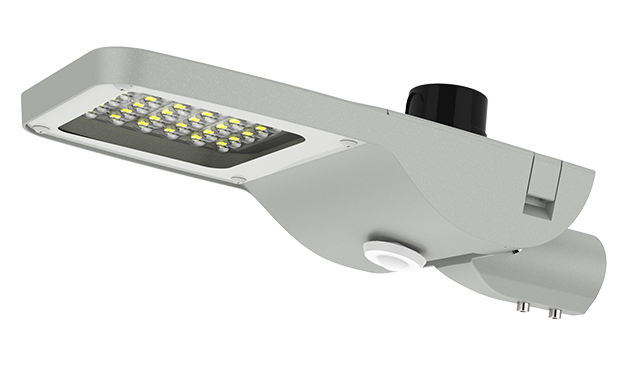

Nero Streetlight

1.Extremely energy efficient - up to 140 lm/w

2.High Luminous flux - up to 21.000 lm

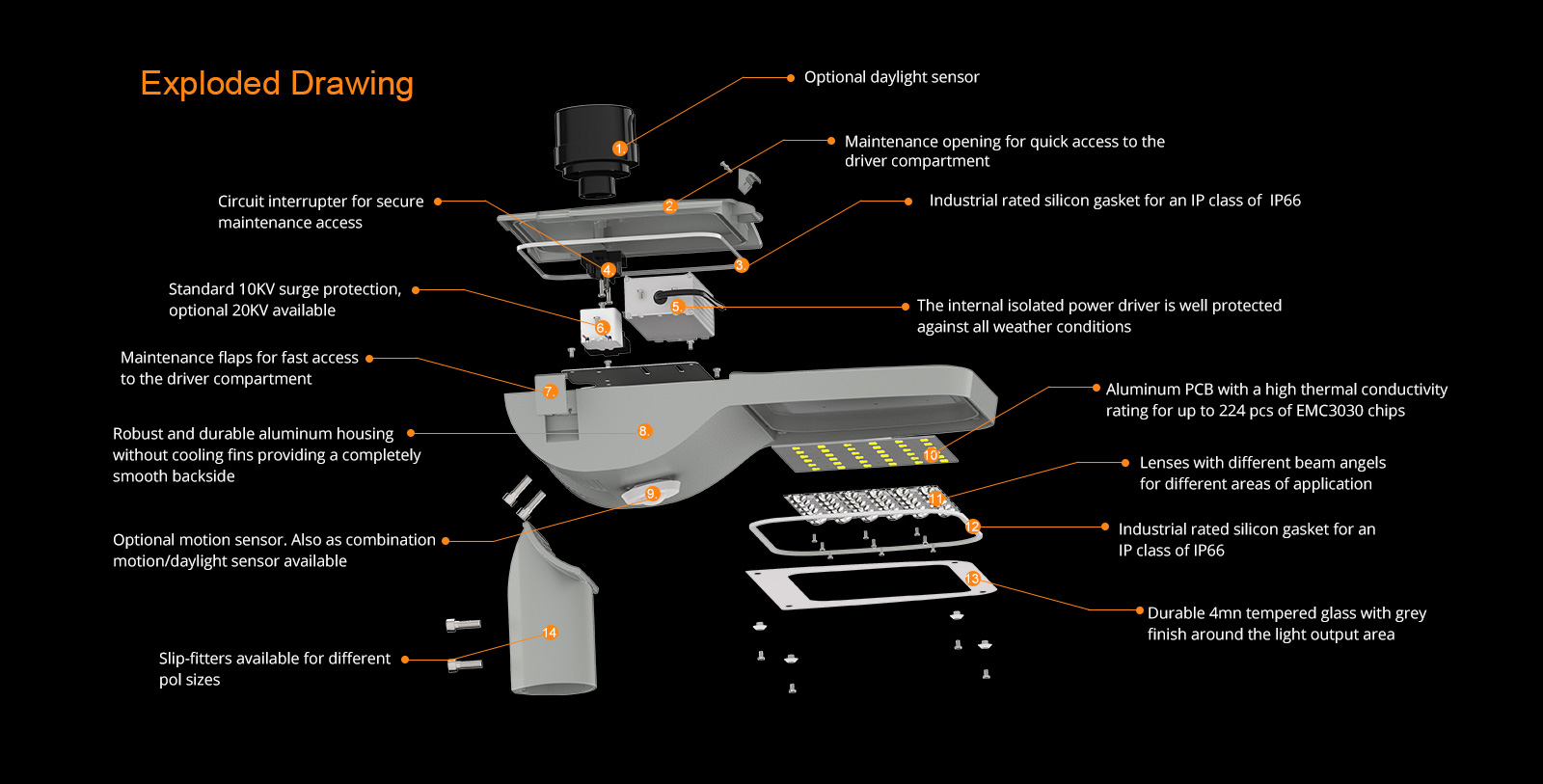

3.Maintenance flap for quick access to the driver compartment

4.Excellent heat dissipation and modern design

5.Slim and compact profile for maximum wind resistance

6.No wires are being exposed to the sun and rain

7.Durable and long-lasting power driver (flicker-free for models above 50W)

8.Circuit interrupter for maintenance access

9.Adjustable installation angel

10.IP66 for all weather conditions

11.10 years warranty

INQUIRY NOW

Product Video

Modern Streetlights play a vital role when it comes to the safety and security on our streets, in parks and in urban areas. Our Nero Streetlight Series (T68) was designed to contribute to these aspects while still being affordable and without compromising on light quality or energy efficiency. During daytime the aesthetic yet unobtrusive design will perfectly blend-in while during dark hours its full long-lasting potential will unfold and illuminate where safety and security are essential. A wide wattage range from 20W to 150W, lenses for different beam angels and a suitable selection of slip-fitters for different pol sizes guaranty the right setup for most areas of application. If needed a quick maintenance flap allows fast and easy access to the driver compartment. Optional daylight and motion sensors potentially enhance power savings and reduce unwanted light pollution.

Options

- Daylight sensor and motion sensor available

- Daylight sensor can be on the upper side or the downside

- Optional 20KV Surge Protection upgrade

- CRI 80 Ra available upon request

Area of application

- Residential roads and streets

- Parks and parking lots

- Loading areas and sporting venues

Certificates

-European market: TUV, GS, CB, D Mark, CE

-Australian market: SAA, CTick,RMC

Specification

Standard lumen (140lm/W)
Model	Nominal wattages (W)	Nominal voltage	Rated luminous efficacy (lm/w)	Nominal luminous flux (lumen)	Beam Angle	LED Quantity	CRI
400-T68-30W	30W	AC100~277V 50~60Hz	130±10	3900±300	14070° 14040°	56pcs EMC3030	>70Ra
400-T68-40W	40W		130±10	5600±400		63pcs EMC3030
400-T68-50W	50W		130±10	6500±500		63pcs EMC3030
450-T68-60W	60W		130±10	8100±600		126pcs EMC3030
450-T68-80W	80W		130±10	10400±800		126pcs EMC3030
500-T68-100W	100W		130±10	13500±1000		168pcs EMC3030
500-T68-120W	120W		130±10	15600±1200		168pcs EMC3030
500-T68-150W	150W		130±10	19500±1500		224pcs EMC3030

Electrical data		Photometrical data
Operating frequency	47-63HZ	Available light colors	warm white;natural white;daylight white
Type of current	AC100-277V	Available color temperatures	3000K;4000K;5000K;6000K
Power factor λ	>0.9	Color rendering index Ra	>70
Efficiency in %	>92%	Standard deviation of color matching	<5
Start time (0.2s / 0.5s / … )	0.1S	UGR (Unified Glare Rating)	<27
Warm-up time to 60 % (1.5s / 2s / … )	0.5S	Available beam angles	14070° 14040°

Standards Certification		Temperatures operating conditions
Type of protection	IP66	Heatsink temperature	-20~+69℃
Tested dielectric strength	3.75KVac	Ambient temperature	-30~+40℃
Safety features	Open circuit protection; short circuit protection ; overvoltage protection	Storage temperature	-40~+80℃
Certificates	European market: TUV, GS, CB, D Mark, CE Australian market: SAA, CTick,RMC
Energy efficiency class	A++

Lifespan		Features/Capabilities and additional product data
Rated nominal Lifetime	100.000 hours	Base/Socket	Directly wired
Switching cycles	100,000 times	Dimmable	1-10V dimmable、DALI dimmable
Lumen maintenance at e.o.l.	80%
LED Device Lifetime	L70/B50
Warranty	10 years warranty

Packing Information

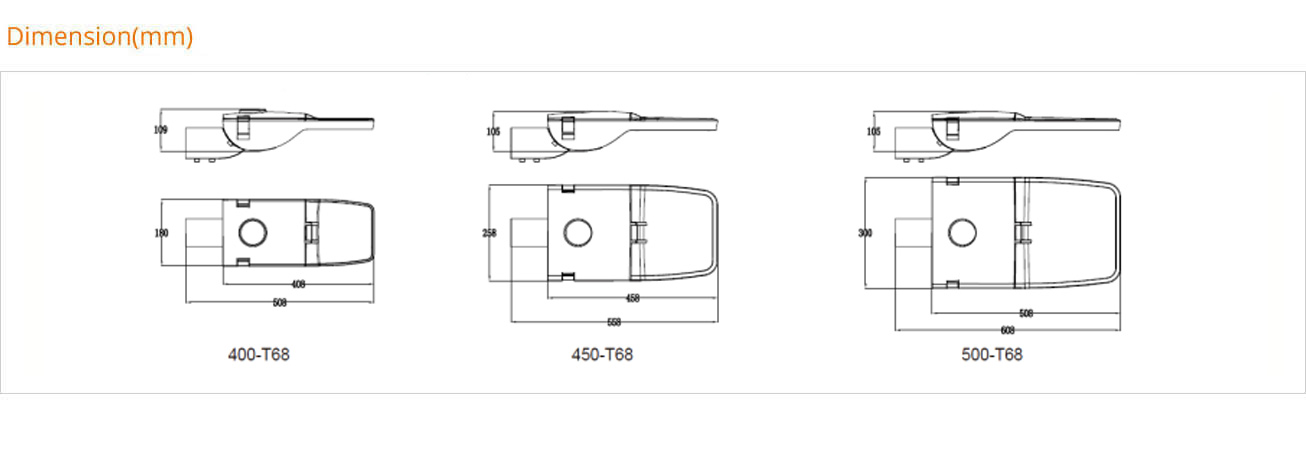

Model	Dimension	CTN SIZE(CM)	QTY/CTN	Net Weight/pcs(kg)	Gross Weight /CTN(kg)
T68-30W/40W/50W	508180109MM	6728.522.5	1PCS	5	6.6
T68-60W/80W	558258105MM	6728.522.5	1PCS	6.7	8.5
T68-100W/120W	608300105MM	6728.522.5	1PCS	8.2	9.2
T68-150W	608300105MM	7239.522.5	1PCS	8.4	9.4
